PolyMax™ PETG offers better mechanical properties than any other regular PETG making it a good candidate for a wide range of applications.
A little bit of Material Science first:
PET is made from terephthalic acid ('TPA') and ethylene glycol ('EG') (CH2OH)2
PCT is made from terephthalic acid ('TPA') and cyclohexanedimethanol (‘CHDM’) C6H10(CH2OH)2
If you react TPA with both EG and CHDM, you get a co-polymer, called PETg or PCTg.
Usually the polymer is called PETg when the major diol is ethylene glycol (>50%) and PCTg when the major diol is CHDM (>50%).
The higher the EG content the stronger and more rigid the material, the higher the CHDM content the more ductile and impact resistant the material.
In summary:
PETG -> Strong and rigid
PCTG -> Ductile and impact resistant
Our PolyMax™ PETG is a modified PETG with enhanced fracture toughness which makes it more ductile and impact resistance.
To conclude, PolyMax™ PETG provides the best of both PETG and PCTG with high strength and rigidity as well as enhanced ductility and impact resistance.
Printing Temperature: 230˚C - 240˚C
Bed Temperature: 70˚C - 80˚C
Printing Speed: 30mm/s - 50mm/s
Fan: 20%
Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Indirect Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Drying Settings: 65˚C for 6h
(Only if the material has absorbed moisture)
If you are looking to produce the strongest part (high layer adhesion), we recommend to switch off your part cooling fan.
If you are looking for a high quality surface finish, we recommend to switch on your part cooling fan.
Usually the best of both worlds is to leave the part cooling fan at 20%.
0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g

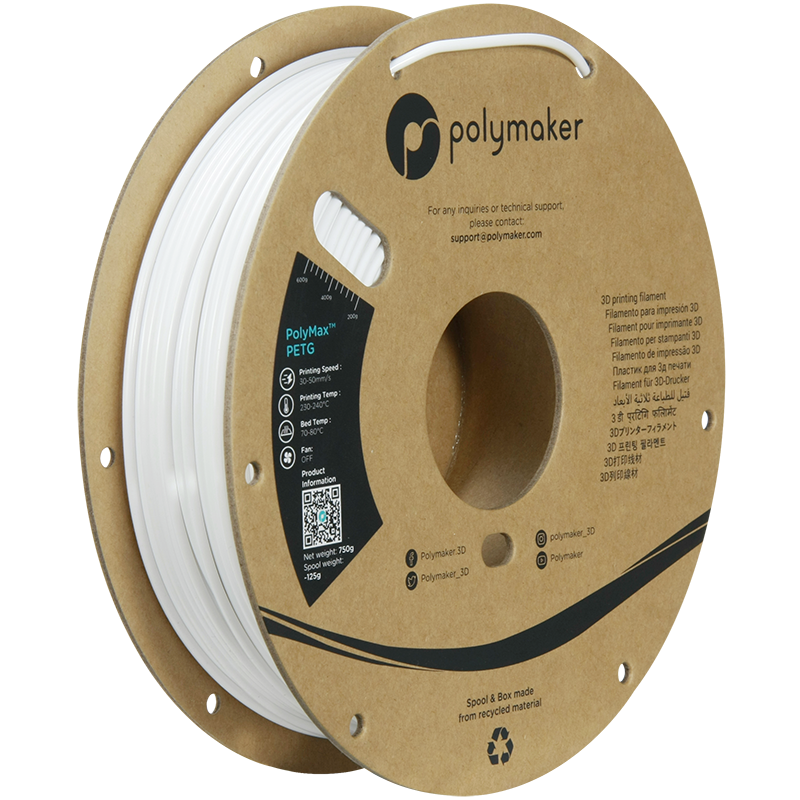

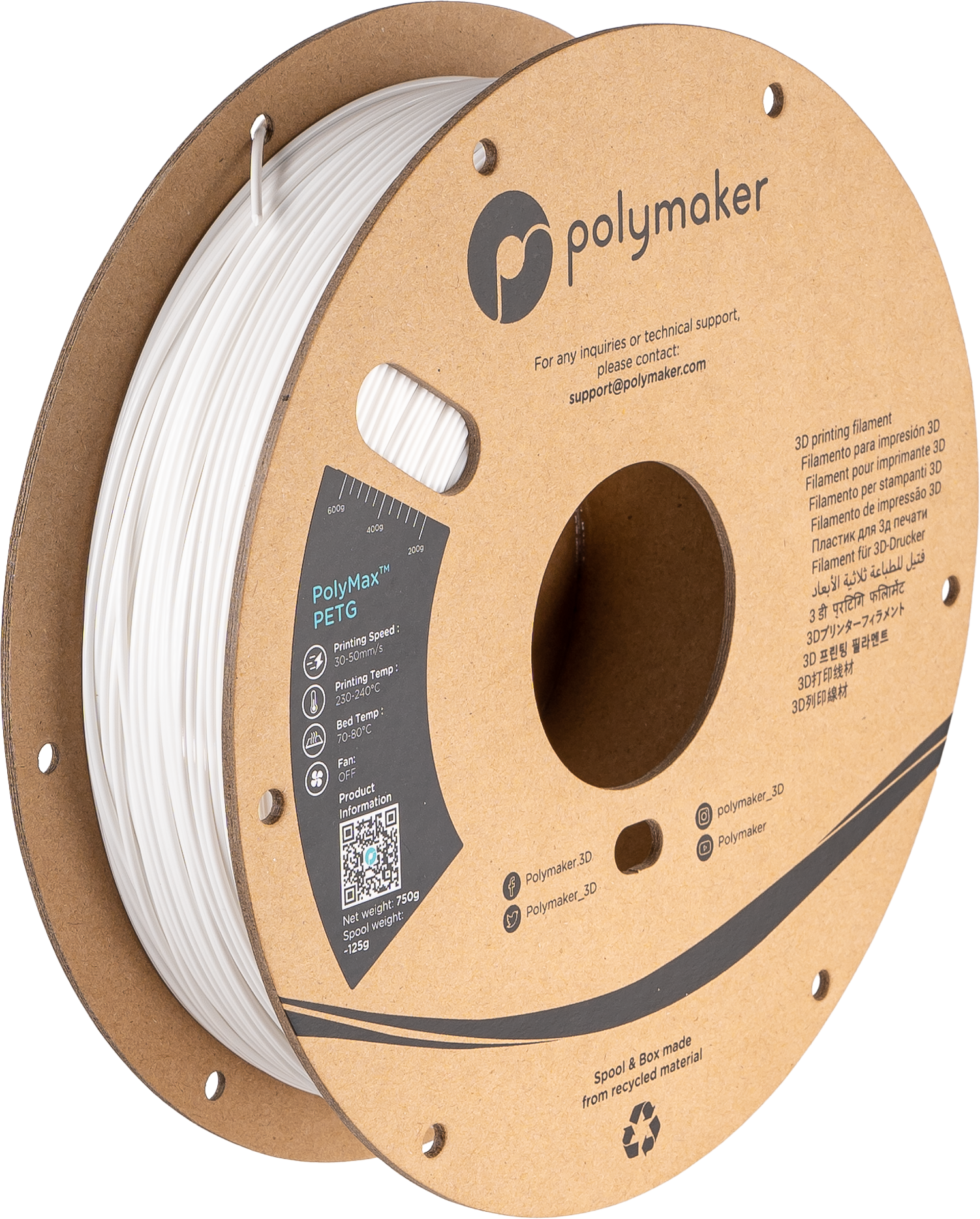

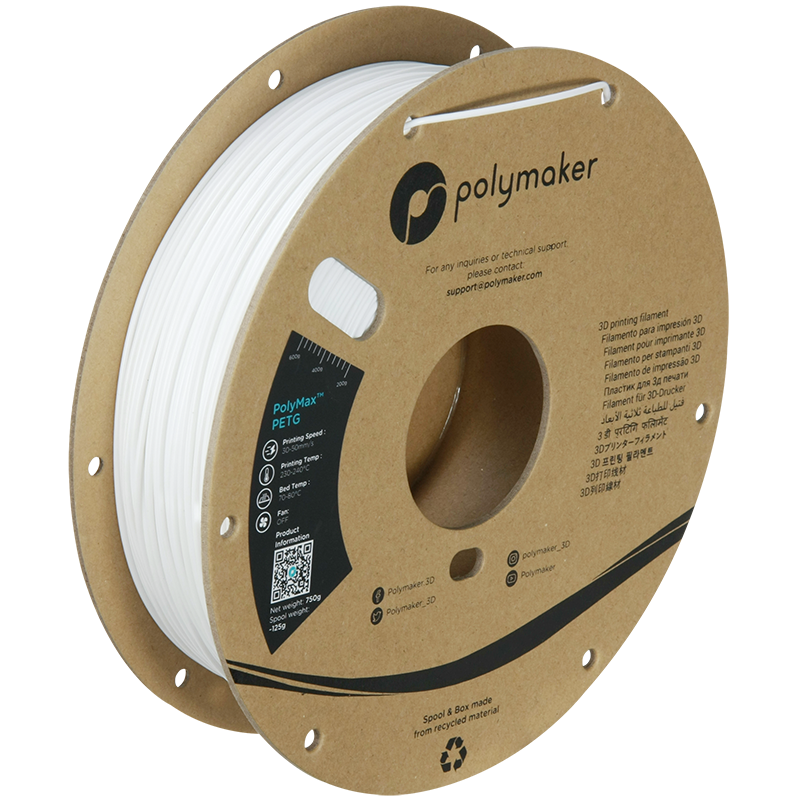

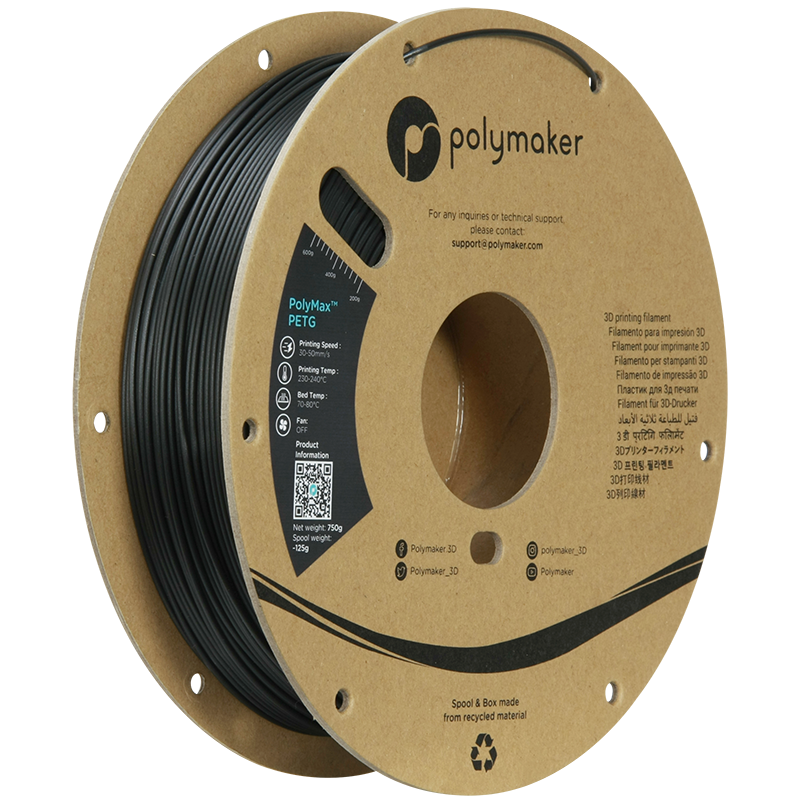

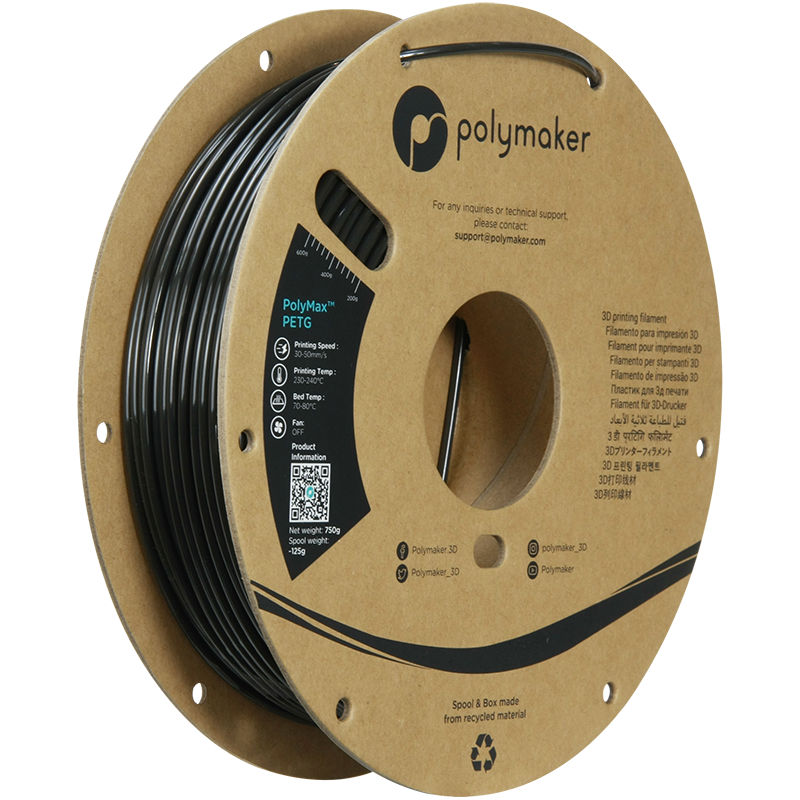

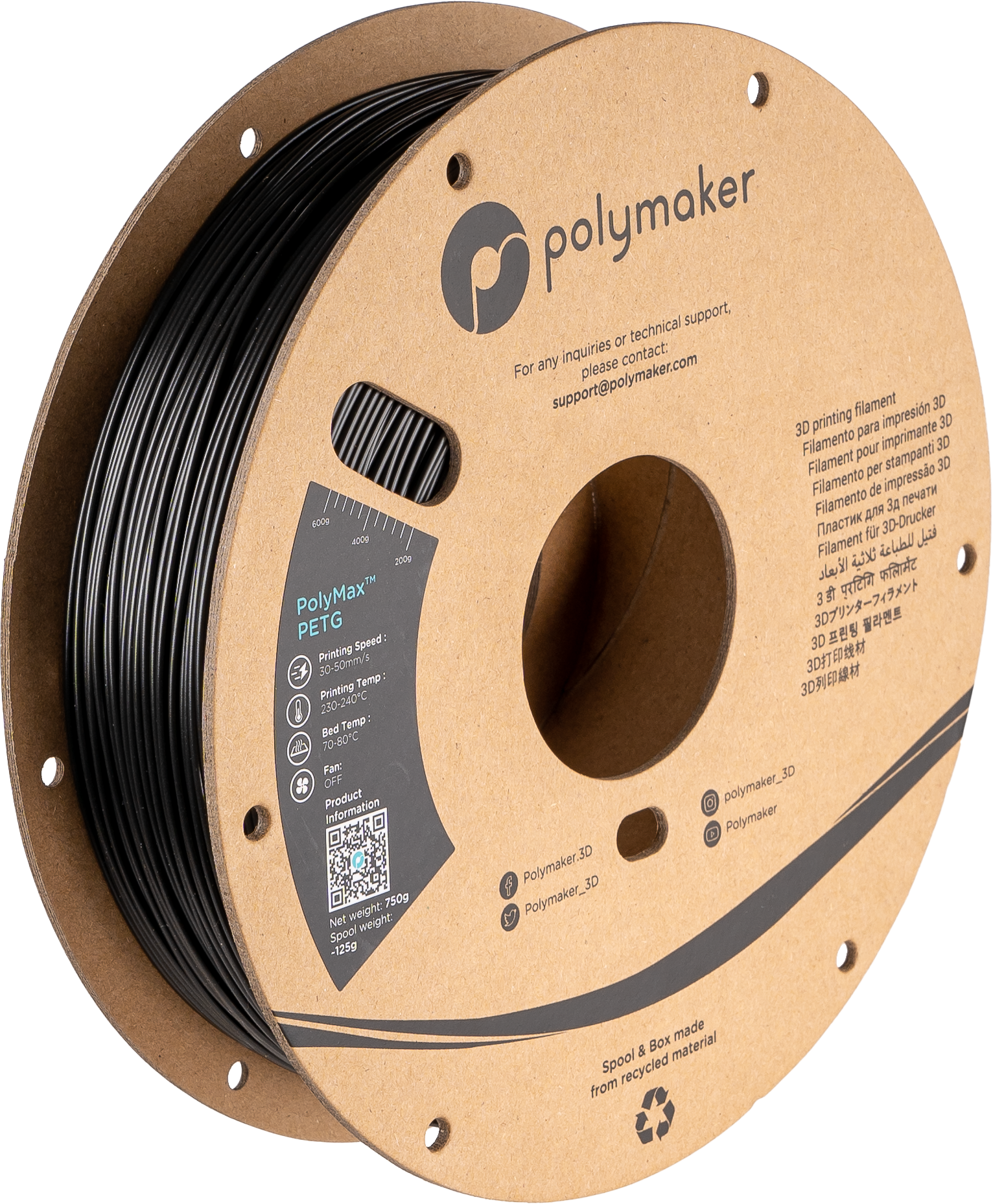

0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g
1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g
2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g
3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g
5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP
