Description

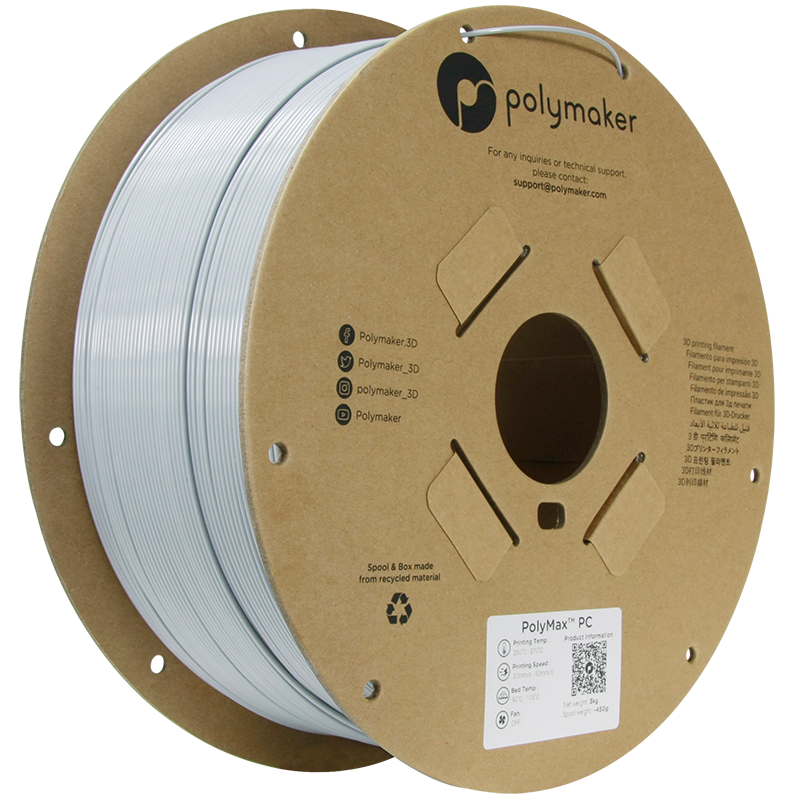

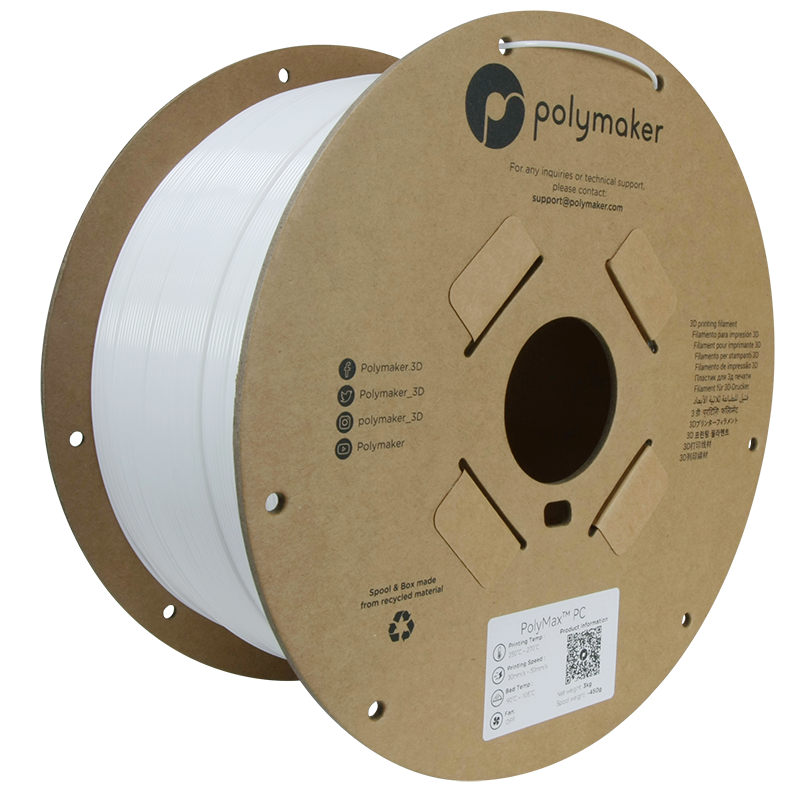

PolyMax™ PC is an engineered PC filament combining excellent strength, toughness, heat resistance and printing quality. It is the ideal choice for a wide range of engineering applications.
In our experience we had excellent experience with Magigoo PC. This special glue allows great adhesion when the build plate is hot and easy release when the build plate cools down.
Printing Temperature: 250˚C - 270˚C
Bed Temperature: 90˚C - 105˚C
Printing Speed: 30mm/s - 50mm/s
Fan: OFF
Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Indirect Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Drying Settings: 75˚C for 12h
(Only if the material has absorbed moisture)
Annealing Settings: 90˚ for 2h
Annealing is the process of heating up the printed parts at a certain temperature for a certain period of time. You can anneal PolyMax™ PC at 90˚ for 2h.
The purpose of annealing PolyMax™ PC is to release the internal stress which accumulates during the printing process. This internal stress can creates micro cracks over time and weaken the part.
(NOTE: In the case of semi-crystalline polymers such as Nylon, annealing purpose is mainly to crystalize the material for better mechanical and thermal properties)
0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g

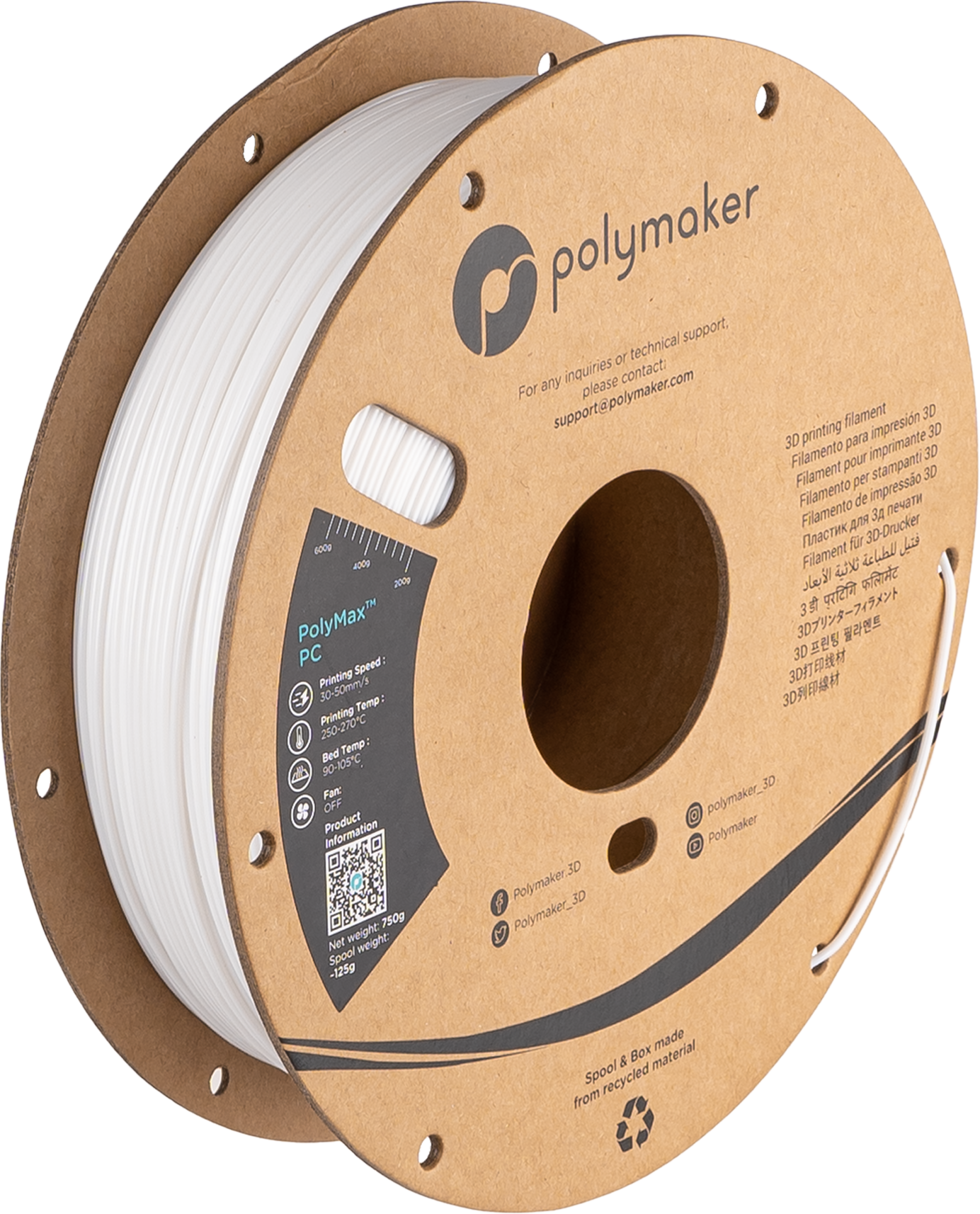

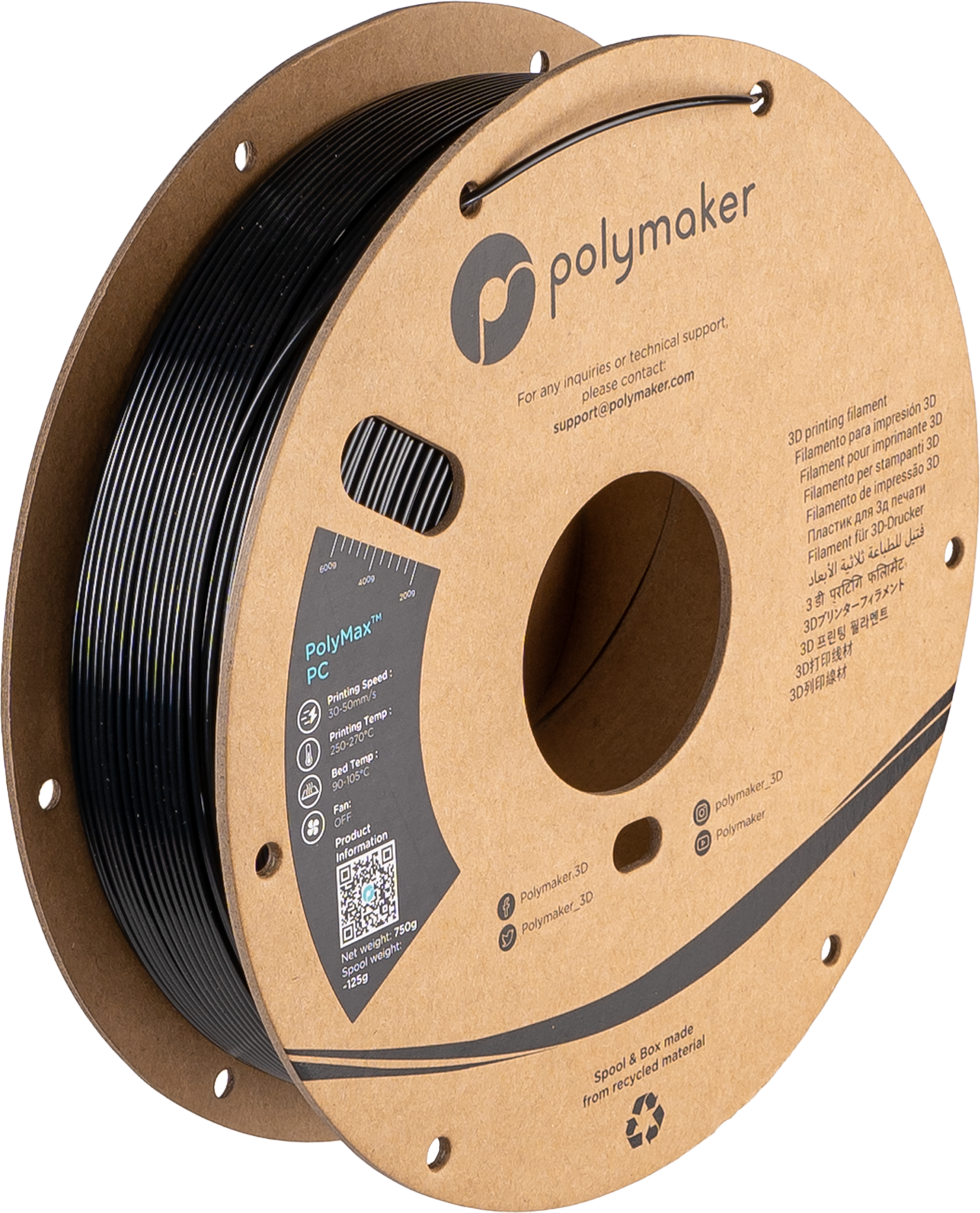

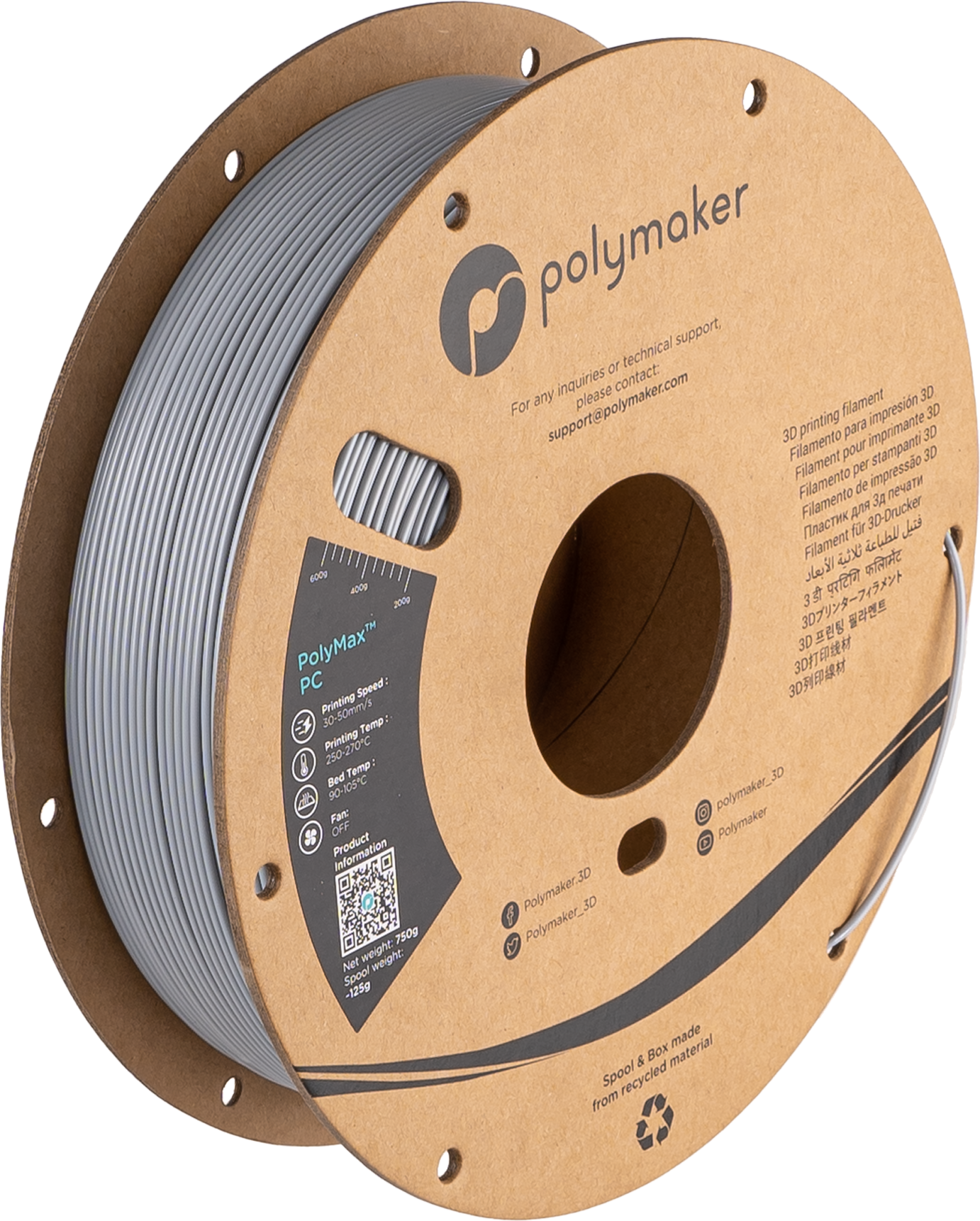

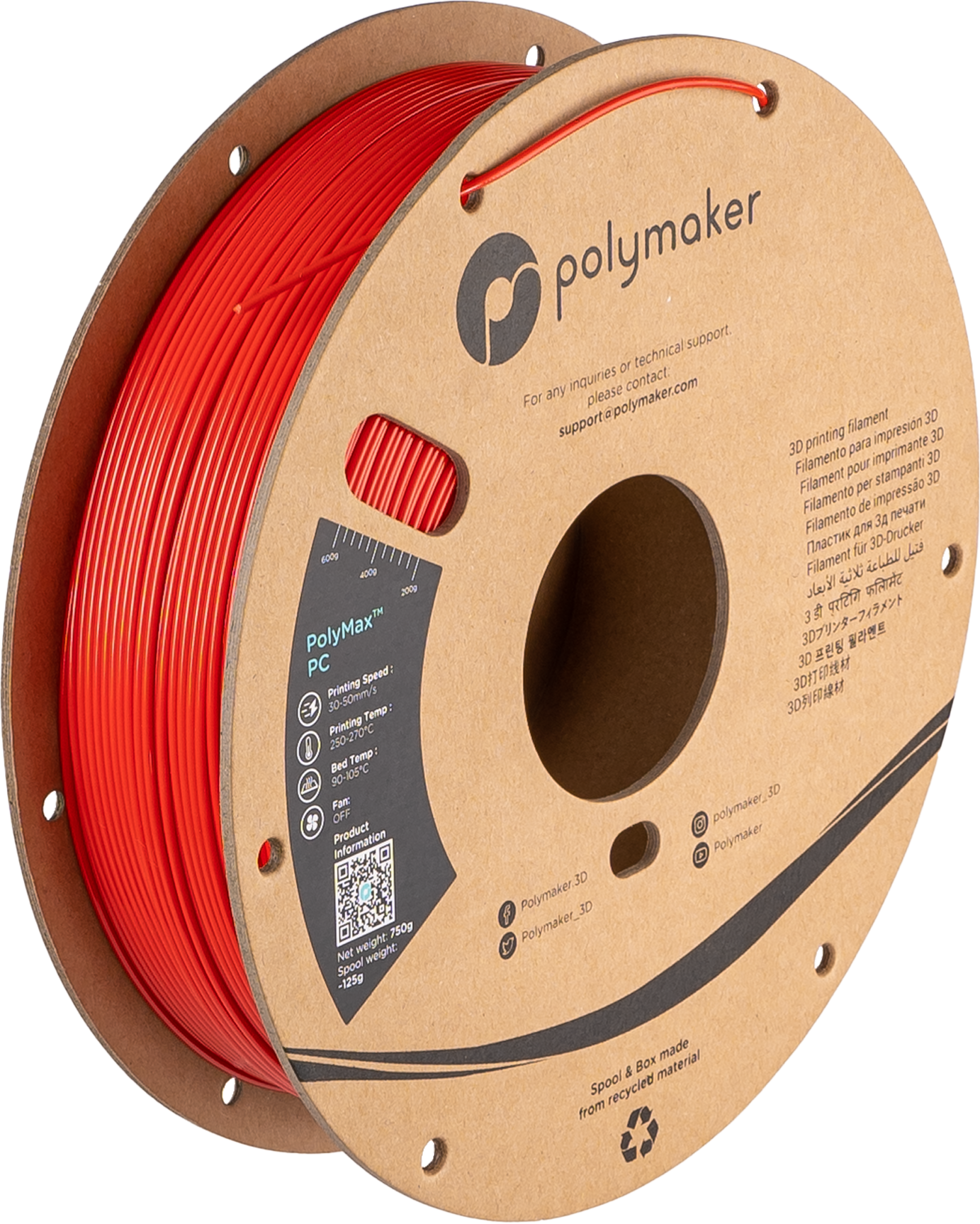

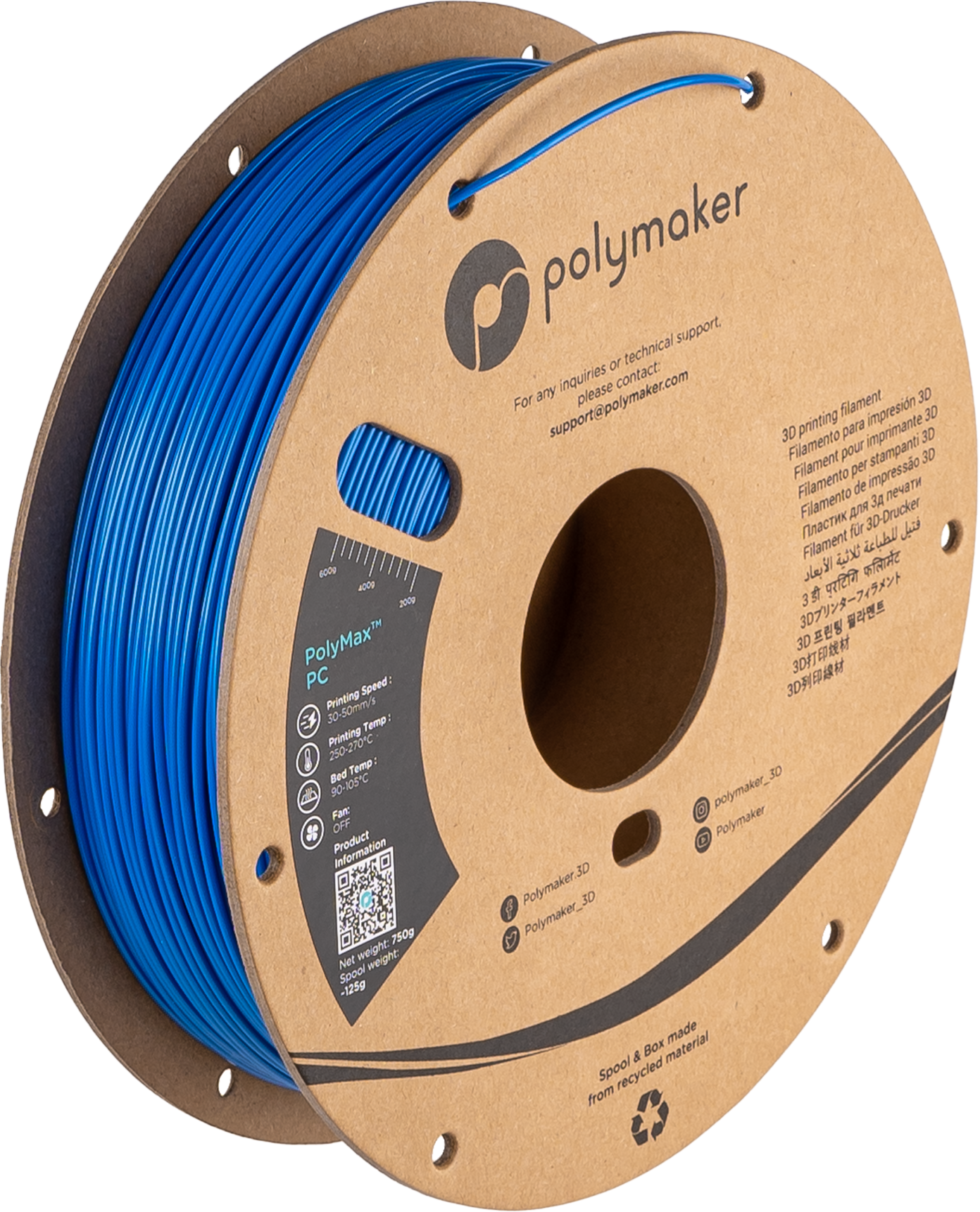

0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g
1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g
2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g
3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g
5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP

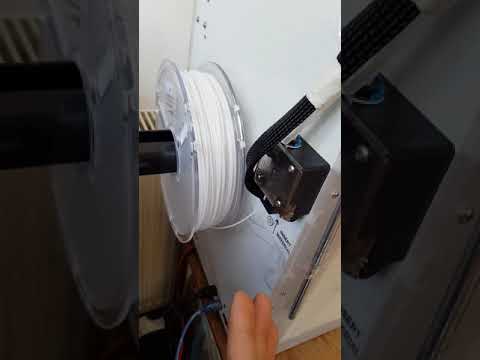

Product presentations & reviews
